Description
| MECHANICAL DATA | |
| Cell Orientation | 144(6*24) |
| Junction Box | IP68,three diodes |
| Output Cable | 4mm²,+400,-200mm/±1400mm length can be customized |
| Glass | Dual glass, 2.0+2.0mm heat strengthened glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 31.8kg |
| Dimension | 2278*1134*30mm |
| ELECTRICAL DATE(STC) | |||||||

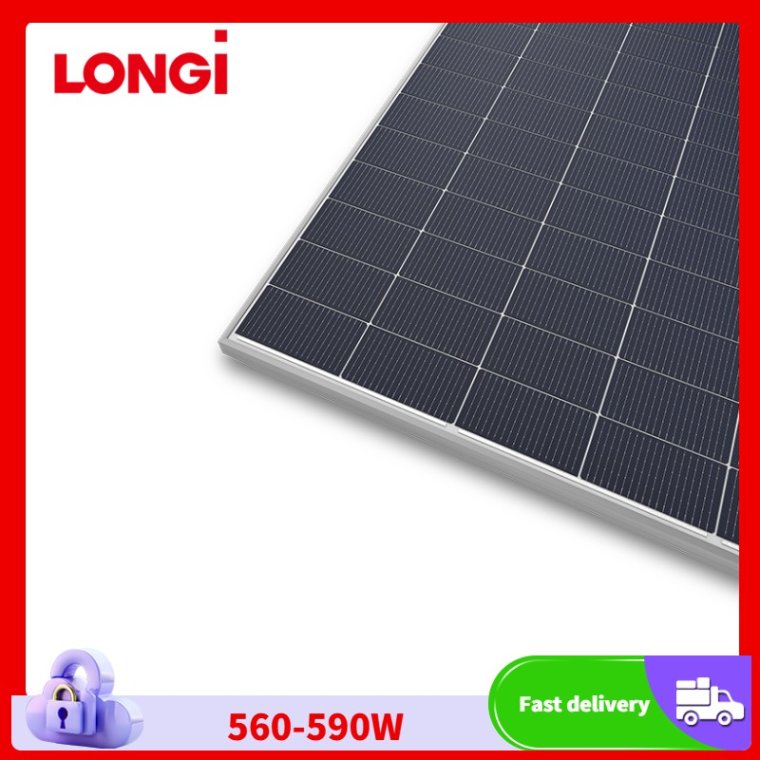

| Nominal Max. Power (Pmax) | 560w | 565w | 570w | 575w | 580w | 585w | 590w |
| Power Tolerance | 0~±3% | ||||||
| Opt. Operating Voltage (Vmp) | 50.99 | 51.09 | 51.19 | 51.3 | 51.41 | 51.52 | 51.63 |
| Opt. Operating Current (Imp) | 13.89 | 13.97 | 14.05 | 14.14 | 14.22 | 14.3 | 14.38 |
| Open Circuit Voltage (Voc) | 42.82 | 42.91 | 43 | 43.11 | 43.22 | 43.33 | 43.44 |
| Short Circuit Current (Isc) | 13.08 | 13.17 | 13.26 | 13.34 | 13.42 | 13.51 | 13.59 |
| Module Efficiency | 21.70% | 21.90% | 22.10% | 22.30% | 22.50% | 22.60% | 22.80% |
