APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit
APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit - Image 2

APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit

SRV15KRILRK

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA double-conversion on-line 9U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, and 3-wire(1P+N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Product Datasheet   User guide   Brochure   Environmental disclosure



Get a Quote
Category: Brand:

Description

This product is compatible with these Communication Options

  • Network Management Card for Easy UPS, 1-Phase

  • Easy UPS On-Line SRVS Modbus Card

  • APC Easy UPS On-Line SRV Dry Contact Card/Relay I/O Card

This product is compatible with these Replacement battery

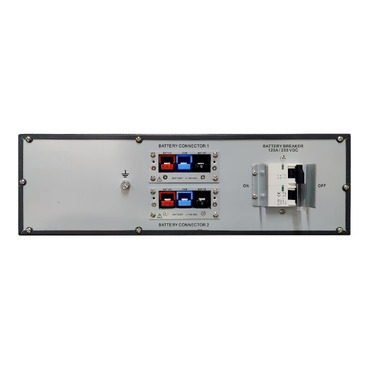

  • APC Easy UPS On-Line SRV 120V RM Battery Pack for 15/20kVA Rack Extended Runtime Model SRV120RLBP2-9A
Overview
Lead time Usually Ships within 4 Weeks
Main
Max. Capacity Used
information_stroke

100 %
Main Input Voltage 230 V AC
415 V AC
Product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V
230 V
415 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Rated power in W 15000 W
Rated power in VA 15000 VA
Output connector type Hard wire 3-wire (1P + N + E) 1
Number of rack unit 9U
Provided equipment 1 USB cable
1 RS-232 configuration cable
3 rack mounting brackets
3 stabilization/wall mounting feet
6 jumper bar
2 external battery pack
1 battery cable
user manual
Range of product Easy UPS On-Line
Batteries & Runtime
Battery type Lead-acid battery
Battery voltage +/- 120 V
Extended runtime 1
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 6 h
Battery charger power 2340 W rated
General
Redundant No
Physical
Colour Black (RAL 7010)
Height 39.3 cm
Width 43.8 cm
Depth 69.0 cm
Net weight 157 kg
Mounting location Front
Mounting preference No preference
Mounting mode Rack-mounted
USB compatible Yes
Mounting position Horizontal
Input
Input voltage limits 110…300 V half load
176…300 V full load
Number of input connectors 1 hard wire 3-wire (1P + N + E)
1 hard wire 5-wire (3P + N + E)
Network frequency 40…70 Hz auto sensing
Output
Maximum configurable power in VA 15000 VA
Maximum configurable power in W 15000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 2 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 95 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Conformance
Product certifications CE
UKCA
Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -20…60 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 65 dBA
Heat dissipation 2503 Btu/h
IP degree of protection IP20
Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off Yes
control panel Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate 600 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1000 mm
Package 1 Width 900 mm
Package 1 Length 600 mm
Package 1 Weight 196 kg
Contractual warranty
Warranty 2 years repair or replace
